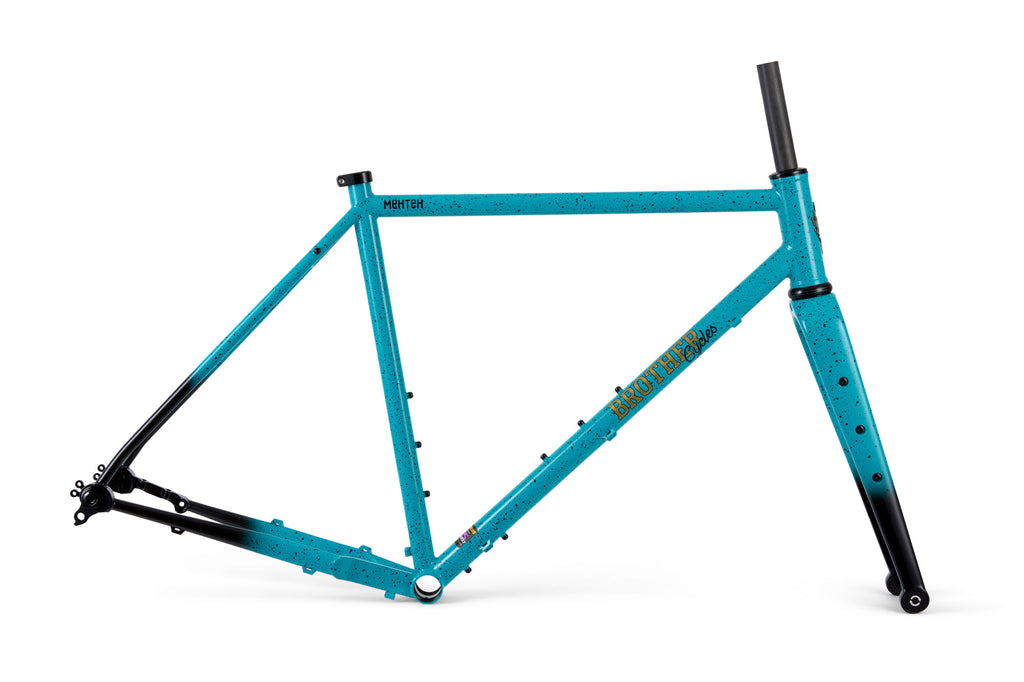

Brother Cycles Mehteh Reynolds 725 gravel frameset in Blue Lagoon, side view

Brother Cycles Mehteh Gravel Frameset

Blue Lagoon / X-Small
£1,199.00
Skip to product information
Brother Cycles Mehteh Reynolds 725 gravel frameset in Blue Lagoon, side view
  • Brother Cycles Mehteh Reynolds 725 gravel frameset in Blue Lagoon, side view

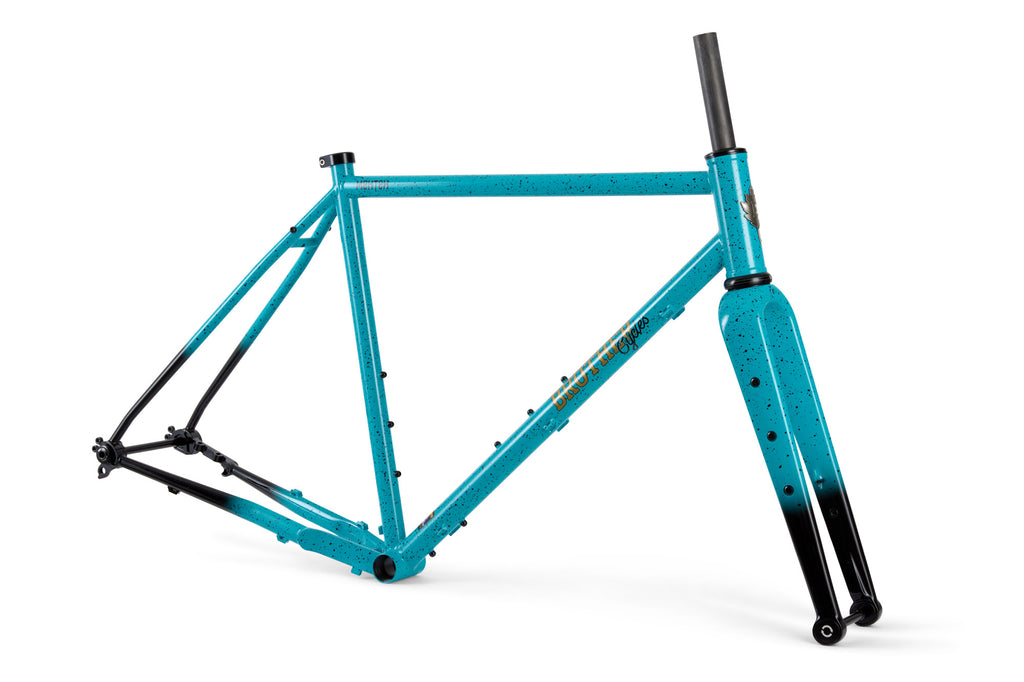

  • Brother Mehteh carbon gravel fork with triple cage mounts, Blue Lagoon

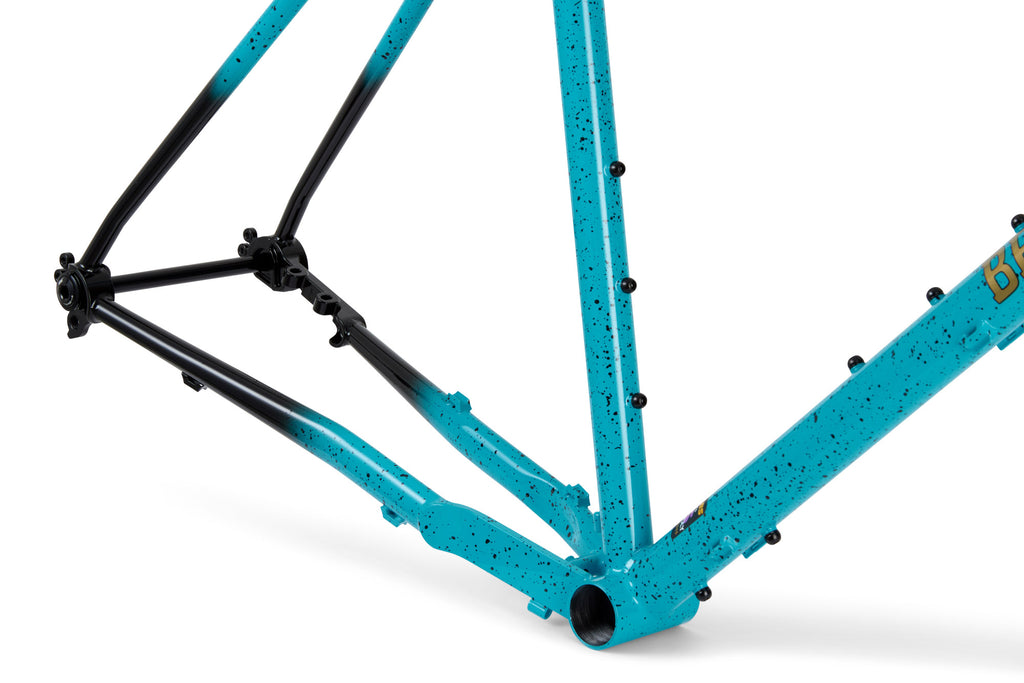

  • Brother Mehteh UDH rear dropout detail, Blue Lagoon

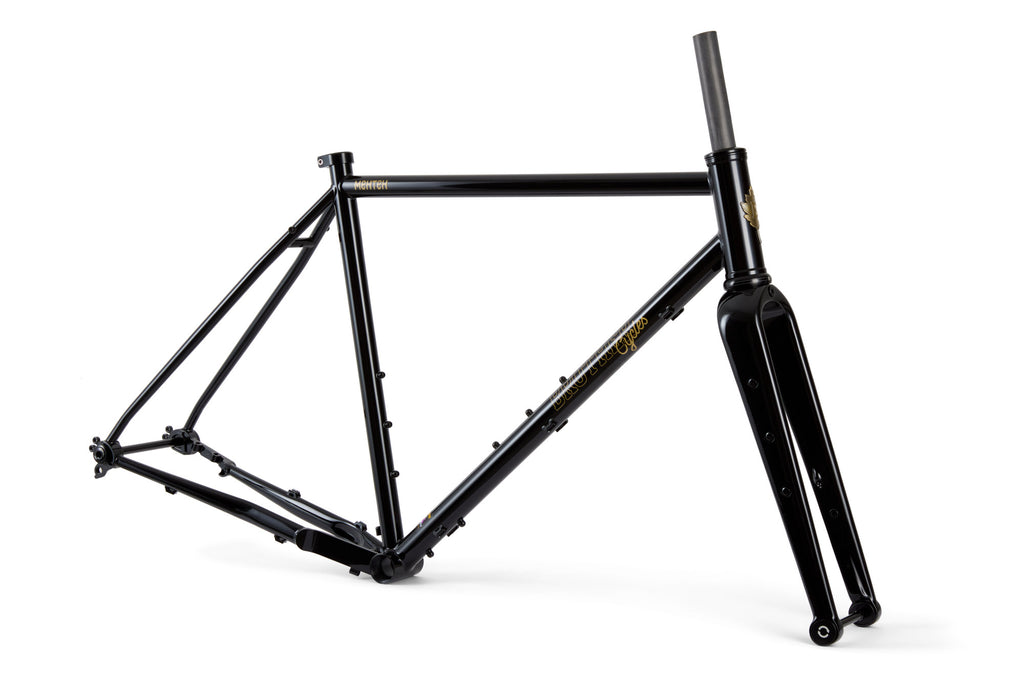

  • Brother Mehteh frame tubes, Stealth Black

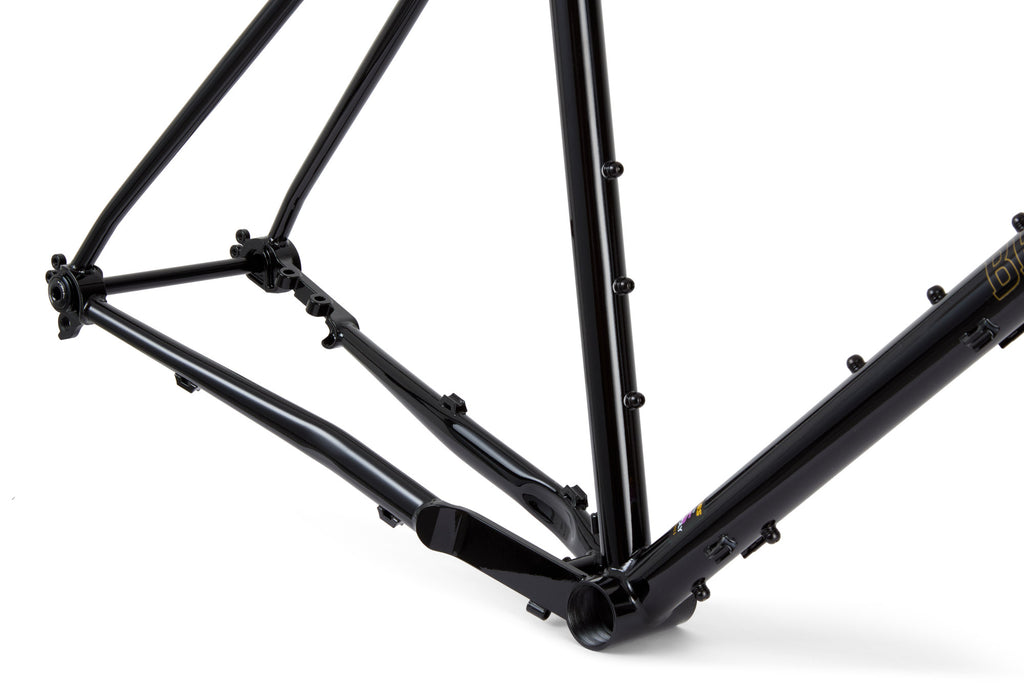

  • Brother Mehteh head tube and fork, Stealth Black

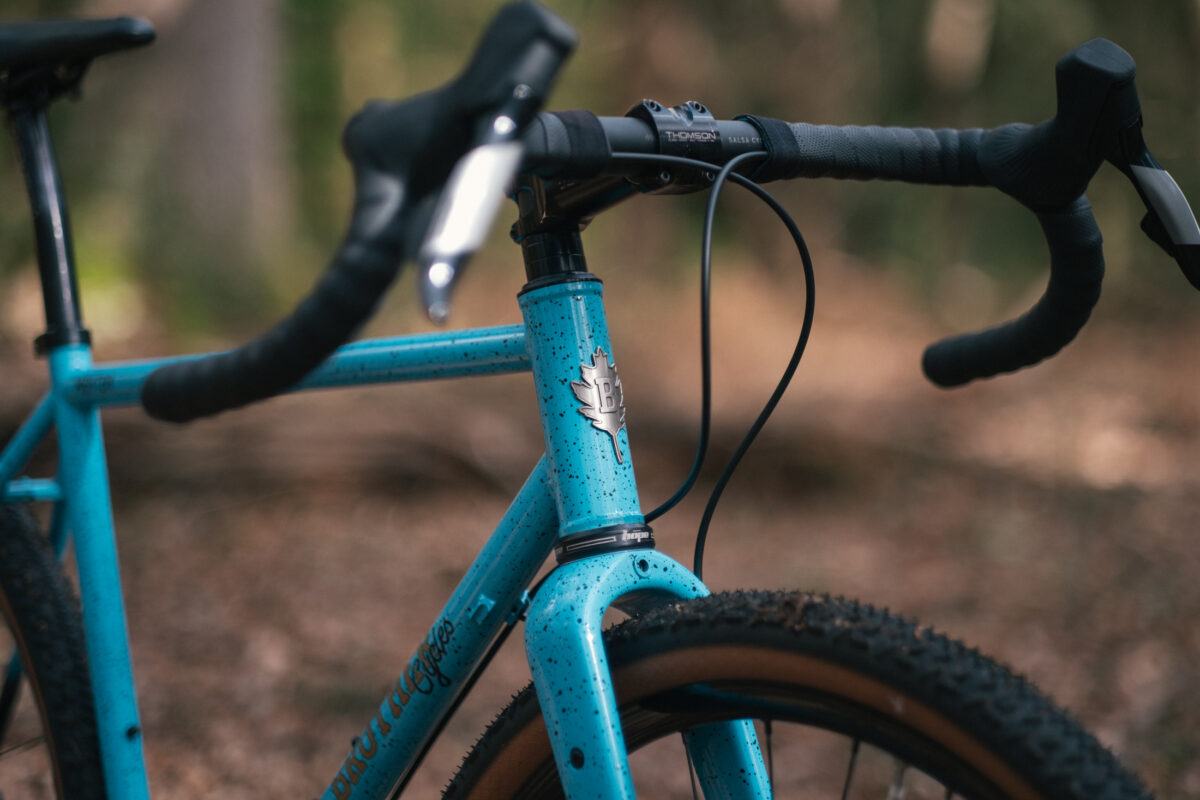

  • Brother Mehteh gravel bike build on a forest trail

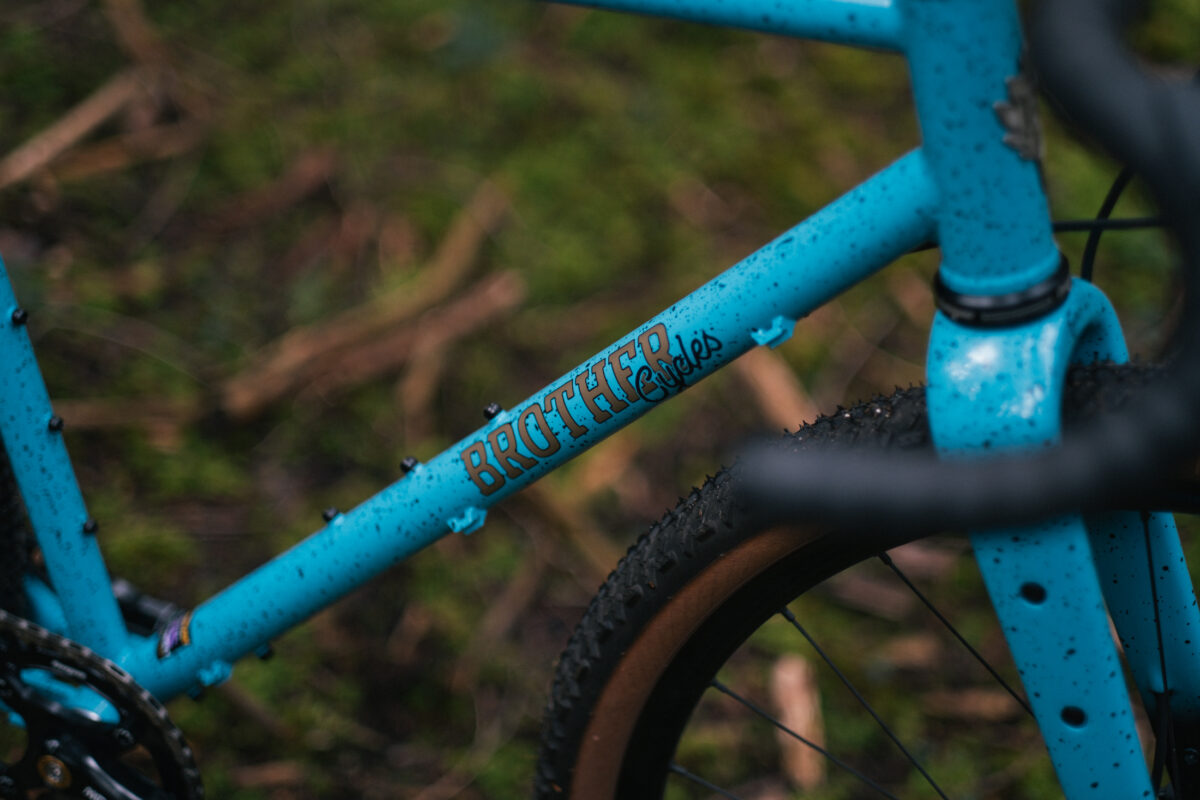

  • Brother Mehteh built for bikepacking with frame bags
Brother Cycles Mehteh Gravel Frameset

Brother Cycles Mehteh Gravel Frameset

£1,199.00
Colour
Frame Size
  • 4.9 from 782 Google reviews
  • Independent Bike Dealer of the Year 2025, BikeBiz Awards
  • UK delivery from £4.99, or free collection from our Bow shop at E3 3XS.
  • Checked by our team before it leaves us

Collecting instead? Email us or message us on WhatsApp before you visit, so we can have it ready for you.

A Reynolds 725 steel gravel frame with room for proper off-road tyres and the mounts for long, self-supported rides.

The Mehteh is Brother's fast drop bar adventure bike. It clears 700c x 50mm or 650b x 2.2 inch tyres, which is more than most gravel frames, so you can keep going when the gravel turns into a bridleway. Riders have taken it to the Tuscany Trail and the Atlas Mountain Race, and it is just as happy on a Saturday loop out of Epping Forest.

It comes with Brother's carbon gravel fork, with triple cage mounts on each leg, dynamo routing and flip-chip dropouts so you can tune the handling. The rear end now takes a SRAM UDH hanger, so it works with a standard rear mech or a Full Mount derailleur.

Why we chose this for our customers:

  • Big tyre clearance: up to 700c x 50mm or 650b x 2.2 inch, front and rear
  • Reynolds 725 steel: heat treated, double butted, light for steel and very comfortable on rough ground
  • UDH ready: runs a standard rear derailleur or SRAM Full Mount, and replacement hangers are easy to find
  • Bikepacking mounts: three bottle positions, rack and mudguard mounts, triple cage mounts on the fork
  • Tunable fork: flip-chip dropouts give 47 or 52mm of rake

Specification

  • Frame: Reynolds 725 heat treated chromoly, double butted main triangle, ED coated
  • Fork: full carbon, 1 1/8 to 1.5 inch tapered, mudguard and triple cage mounts, dynamo routing, flip-chip, 12x100mm thru axle included
  • Rear: 12x142mm thru axle included, SRAM UDH hanger
  • Brakes: flat mount disc, 160mm max rotor
  • Tyre clearance: 700c x 50mm or 650b x 2.2 inch
  • Seatpost: 27.2mm, 30mm seat clamp included
  • Headset: ZS44/28.6 upper, EC44/40 lower (not included)
  • Bottom bracket: 68mm ISO threaded
  • Chainrings: up to 52-39-30t triple, 50-34t double, 48t single
  • Weight: 2.3kg frame (medium), 0.55kg fork uncut
  • Three year frame guarantee from Brother Cycles

Geometry

Size XS S M L XL XXL
Seat tube (C-T) 490 510 530 550 570 590
Effective top tube 525 544 561 576 591 606
Head tube 110 125 140 160 180 200
Head angle 70.5 71 71.5 71.5 71.5 71.5
Seat angle 74 73.5 73 73 73 73
Chainstay 430 430 430 430 430 430
Stack 545 561 577 596 615 634
Reach 369 378 385 394 403 412
Wheelbase 1009 1019 1026 1042 1057 1073

All measurements in mm and degrees.

Ideal for: gravel riders and bikepackers who want steel comfort with modern tyre clearance and standards.

Brother design their frames in London and we build them up on the bench in Bow, a few miles across East London. Bring us a parts list, a pile of components you already own, or just an idea, and we will spec, build and fit it for you. See the full Brother Cycles range, our other framesets, or book a build through our workshop.
